福建项目：流量中带着vlan标签，rst包发送失败
| ID | Creation Date | Assignee | Status |
|---|---|---|---|
| OMPUB-825 | 2023-02-28T15:03:19.000+0800 | 杨威 | 已解决 |
对应功能端IP：192.168.16.11-13

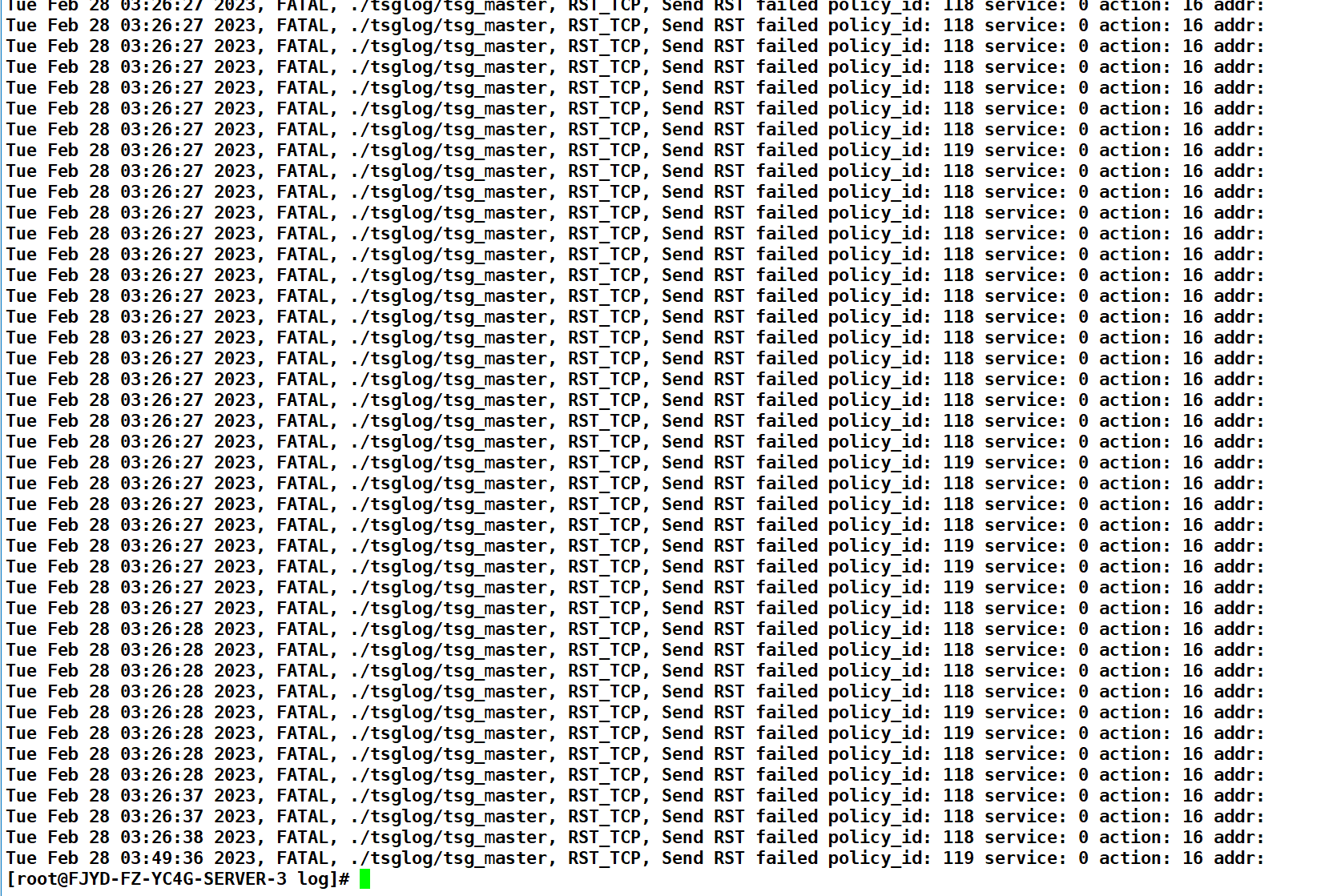

问题描述： 功能端接收的流量中带有vlan标签，导致功能端发rst失败 tail -100 __tsglog_tsg_master.2023-02-28 !image-2023-02-28-15-01-08-214.png|thumbnail!
etc/asymmetric_addr_layer.conf中所有项均已注释 !image-2023-02-28-15-02-25-237.png|thumbnail!
目前在汇聚分流上剥掉了vlan标签，rst发送正常yangwei commented on 2023-03-31T12:02:07.805+0800:
!image-2023-03-31-12-01-22-390.png!

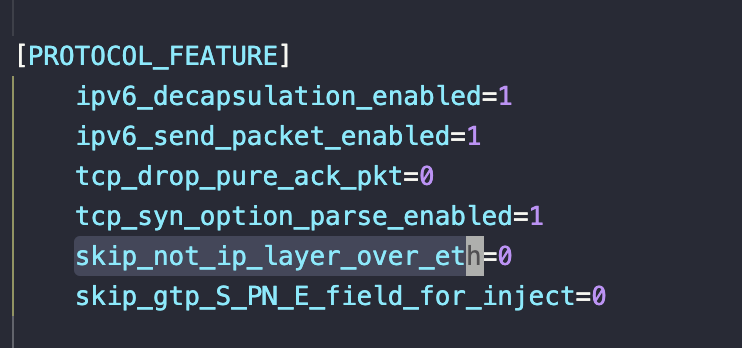

设置图中的skip_not_ip_layer_over_eth=1即可不构造vlan头发RST包，满足mirror环境的需求 [~zhangzhihan]
