【E21现场】BOLE-IGW多块NPB出现tsg_9140_packet_io_rxdrop丢包告警

ID Creation Date Assignee Status
OMPUB-1290 2024-05-15T16:33:59.000+0800 杨威 处理中

2024.05.13 09:00--2024.05.14 09:00 BOL-IGW-T9K002-NPB02 11次

2024.05.14 09:00--2024.05.15 09:00 BOL-IGW-T9K001-NPB03 1次 BOL-IGW-T9K002-NPB02 16次 BOL-IGW-T9K002-NPB03 1次 BOL-IGW-T9K002-NPB04 1次 yangwei commented on 2024-05-16T09:55:57.372+0800:

根据现场返回的监控，存在下述两类情况：

  • 5.13~5.14，BOL-IGW-T9K002-NPB02持续丢包
  • 出现丢包的时段自10:00，至22:00~23:00，丢包规模随流量增长
  • 触发Overload Protection的时间（20:00~21:00）在流量峰值开始时段 ** 说明日间丢包时，未触发单核CPU占用超限的现象

结论：Bole-IGW NPB02持续丢包的原因，需要进一步观察日间丢包的情况，根据现场判断是否由于单核分流或者流量处理延迟较高造成。

!image-2024-05-16-09-43-59-546.png|width=278,height=350!!image-2024-05-16-09-43-25-976.png|width=307,height=356!

!image-2024-05-16-09-45-17-408.png|width=287,height=300!!image-2024-05-16-09-45-36-112.png|width=302,height=327!

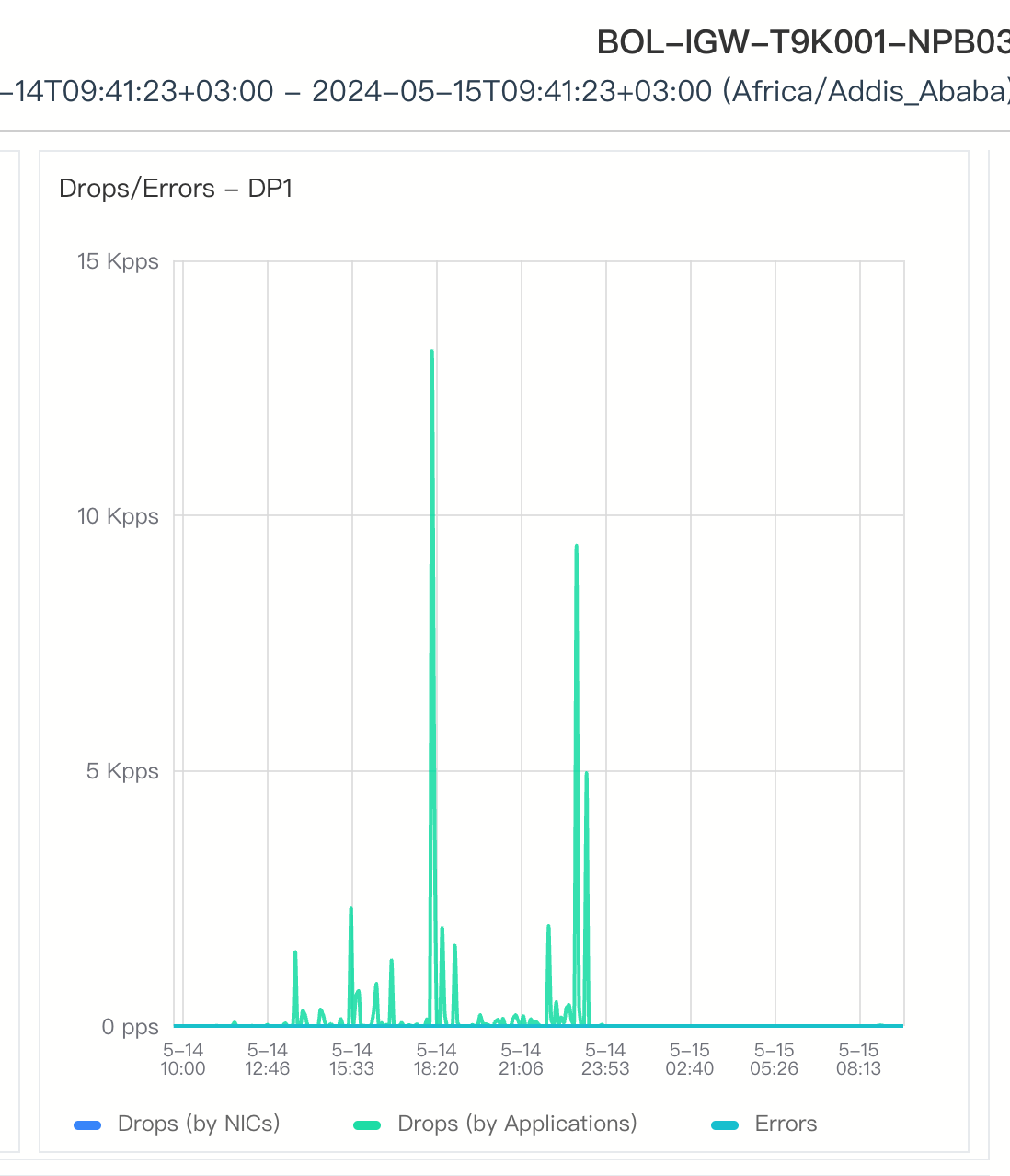

  • 5.14 Bole-IGW站点在18:20前后，相关设备均出现规模在10K~15kpps的丢包
  • 丢包规模和发生时间点较为一致，监控中TCP会话新建未出现突增

结论：推测为UDP异常流量，拟在2307的监控面板添加UDP会话监控指标，确认是否当时是否存在异常流量

!image-2024-05-16-09-40-51-957.png|width=296,height=345!!image-2024-05-16-09-40-25-601.png|width=271,height=352!!image-2024-05-16-09-41-26-969.png|width=280,height=351!

liuxueli commented on 2024-05-16T21:37:21.940+0800:

  • 北京时间2024/5/16 21:30:00 BOL-IGW-T9K002-NPB02持续丢包，登录设备查看丢包线程对应的UDP新建/删除流较高(20000~35000/秒)，调整SAPP参数，限制UDP的新建及淘汰速度，UDP新建/淘汰各限制为5000/秒，持续观察。 ** [^20240516213221.BOL-IGW-T9K002-NPB02.sysinfo.log.txt]  ** !20240516213221.BOL-IGW-T9K002-NPB02.png!

liuxueli commented on 2024-05-17T10:37:36.454+0800:

  • 北京时间2024/5/16 22:00:00 BOL-IGW-T9K002-NPB02捕获数据包，分析捕获的数据包，发现三元组固定但是源端口递增的DNS数据包(且数据包符合DNS格式)，怀疑是DNS flood。 ** 数据包： *** NAS:  E21_pcap/Bole-IGW02-NPB02 ** ip.addr==196.188.52.10 && ip.addr==208.87.242.217 && udp.port==53 *** [^dns.query.196.188.52.10-208.87.242.217.53.pcap] ** ip.addr==108.181.2.147 && ip.addr==213.55.125.42  && udp.port==53 *** [^dns.query.213.55.125.42-108.181.2.147.53.pcap]

liuxueli commented on 2024-05-17T14:52:24.760+0800:

  • 北京时间2024/5/17 01:15:00~01:25:00 BOL-IGW-T9K002-NPB02设备存在rxdrop丢包，峰值约9Kpps，进一步调整SAPP参数，限制UDP的新建及淘汰速度，UDP新建/淘汰各限制为3000/秒，持续观察。 ** max_opening_per_sec=3000

** max_timeouts_per_sec=3000

** !image-2024-05-17-14-52-13-953.png|width=1297,height=682!

yangwei commented on 2024-05-17T15:19:07.001+0800:

  • 查询现场返回的数据包中两个服务端IP 208.87.242.217 和108.181.2.147，ASN均为“AS40676 Psychz Networks”，属于一家提供CDN和DDoS Migration的公司
  • 向上述服务端发起dns查询，未收到响应

推测对应的DNS流量为针对该服务商的DoS攻击流量/Dos攻击牵引流量
