# 【E21现场】优化app_sketch_local插件的内存使用，修复BOLE-IGW 10.225.11.1 内存告警

| ID | Creation Date | Assignee | Status |
|----|----------------|----------|--------|
| OMPUB-523 | 2022-06-14T04:07:14.000+0800 | 刘学利 | 已关闭 |


---

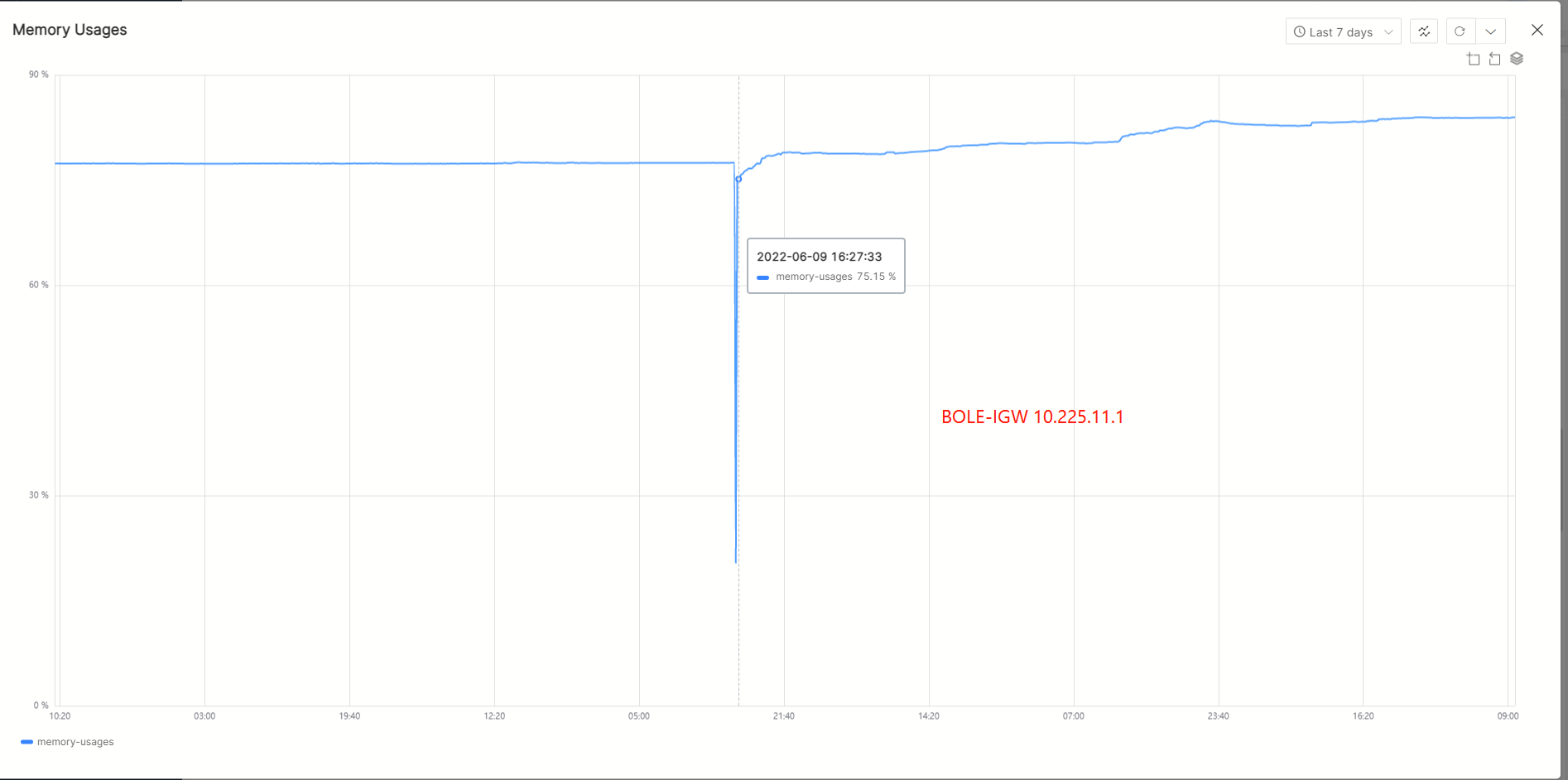

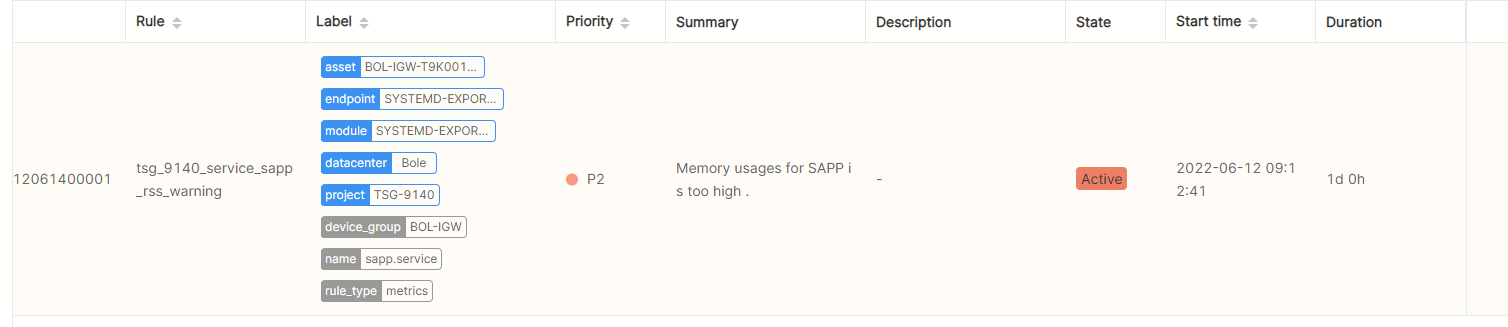

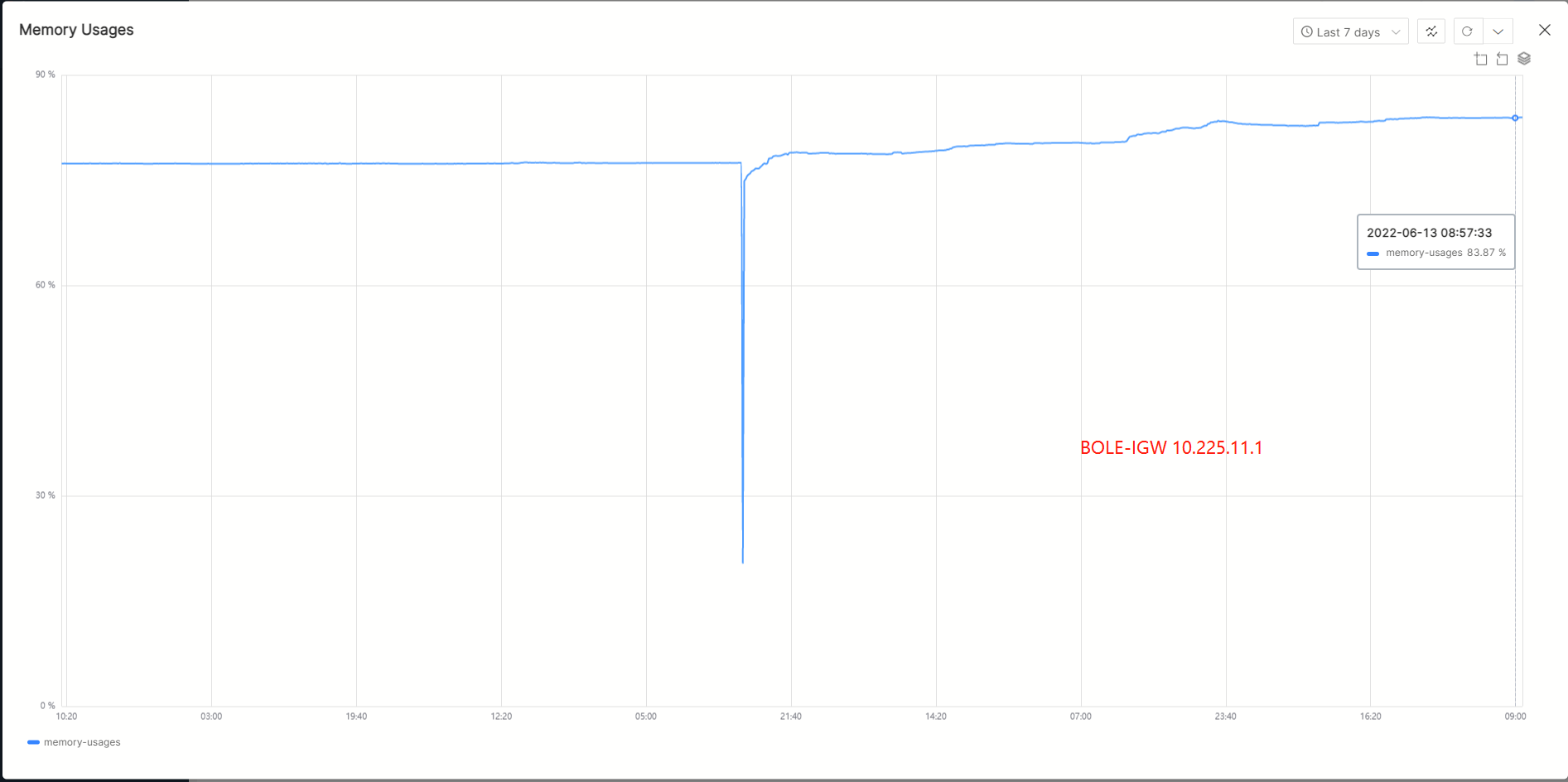

BOLE-IGW 10.225.11.1 从2022-06-09 16:17:00 重启之后内存持续上涨 到现在已经超过80了，告警已经持续了一天多

DIR-IGW 10.219.11.7 在2022-06-06出现内存告警，查看流量、内存曲线，升级之后 内存曲线是持续上涨的。**liuxueli** commented on *2022-06-16T13:22:53.812+0800*:

* 更新app_sketch_local-v4.3.6版本，可以节约10%的内存。



---

**liuxueli** commented on *2022-06-16T15:58:21.460+0800*:

* 更新BOLE-IGW 10.225.11.1



---

**liuxueli** commented on *2022-06-20T09:12:00.914+0800*:

* 在BOLE-IGW 10.225.11.1更新app_sketch_local后，内存节约10%左右
 ** !image-2022-06-20-09-11-06-798.png!



---

**zhengchao** commented on *2022-06-20T10:14:46.991+0800*:

并发会话有多少？列一下节省内存的计算公式。



---

**liuxueli** commented on *2022-06-20T10:44:19.379+0800*:

* SAPP统计的流标签的数量如下，{color:#de350b}其中app_sketch_local的流标签数量为3095301个，每个流标签节省约4KB的内存，3095301+4KB=12678352896(约12.6GB){color}
 **  旧版本app_sketch_local每个流标签大小为(32+4096)bytes，4K存储包长序列的特征
 ** 修改后app_sketch_local每个流标签大小为(32+24+N*8*2)bytes，其中N代表记录包长的个数，目前配置是N=2
 **
{code:java}
Project_ID In_Use_Number Project_Name
         1       2856557 tcp_flow_stat
         2       2856557 tcp_deduce_flow_stat
         3       1226075 udp_flow_stat
         4       2415256 L7_PROTOCOL_LABEL
         6       3940743 TSG_MASTER_INTERNAL_LABEL
         7       3095300 TSG_MASTER_CONTEXT
         8       3940746 TSG_TCPALL_CONTEXT
         9       3041973 APP_IDENTIFY_RESULT
        10       1280149 MESA_PROTO
        11       1172430 JA3_FINGERPRINT_LABEL
        12          1718 MAIL_IDENTIFY
        13       2856560 SKETCH_PROTO_CTX_LABEL
        14       3940748 SKETCH_TRANS_LAYER_CTX_LABEL
        15         19169 CAPTURE_STREAM_PME
        17         33869 USER_DEFINE_APP_ID_LABEL
        18        582895 BUILT_IN_APP_ID_LABEL
        19       2322879 SYN_ATTRIBUTE
        20        787358 SACK_ATTRIBUTE
        21       3095301 APP_SKETCH_CONTEXT
     Total      39466283 N/A
 {code}



---
